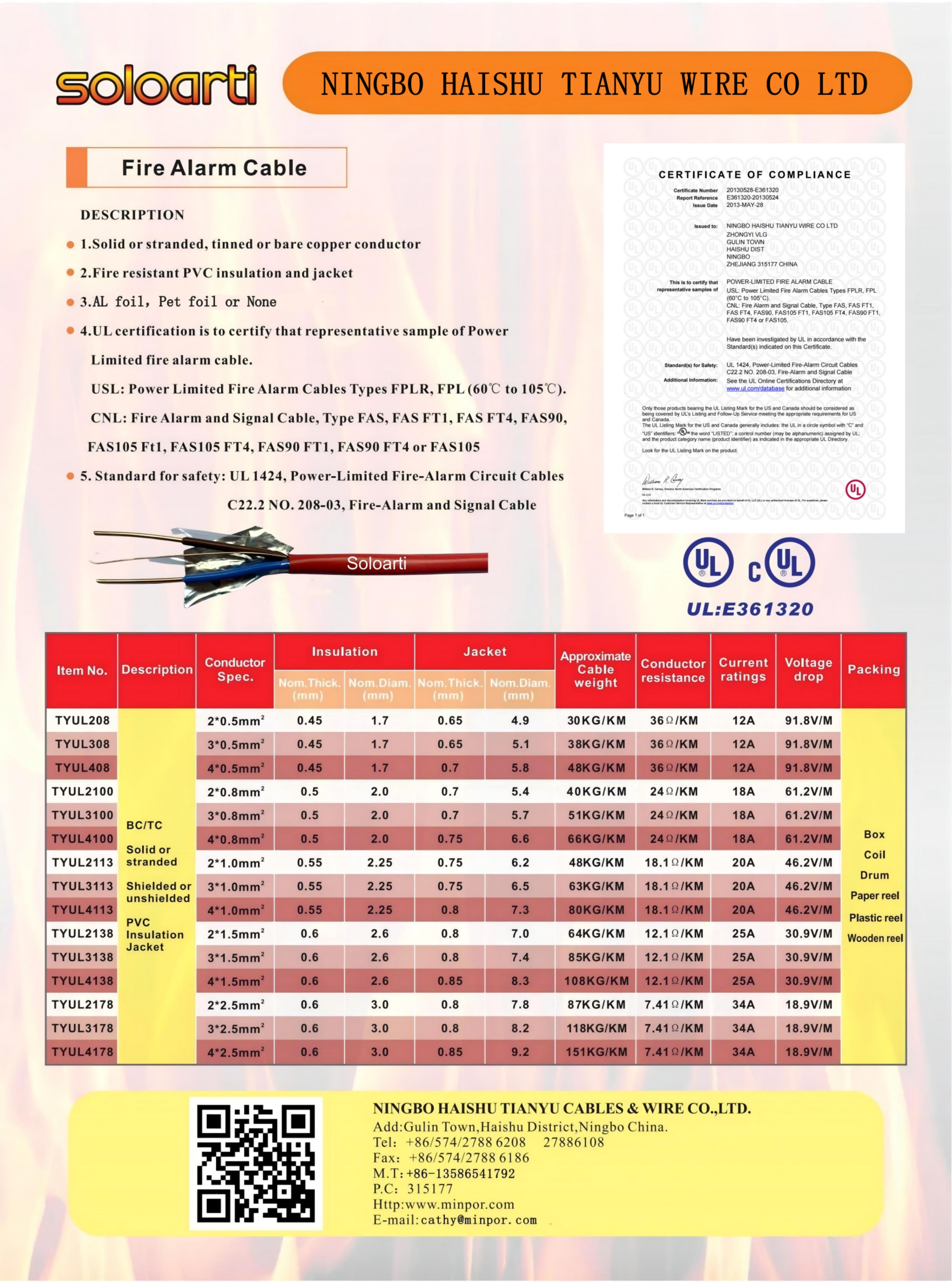

Construction
-Conductors: Stranded Solid,Copper conductor UL1424,UL1581
-Insulation: Fire Resistance PVC
-Binder Tape: Polyster tape 50% overlap
-Collective Screen: Polyster tape 50% overlap Aluminium/Polyester tape,metallic side down,in contact with Solid Copper drain wire
-Outer Sheath: Fire Resistance PVC
-Color: Red,White,Orange
Technical Data
Conductor:Size Scope AWG26-AWG10
Minimum insulation resistance:Individual conductors
>200 Mohmxkm at+20℃
Minimum bending radius:8xOveralldiameter Fire Rating:UL1666,FT1,UL1581
Operating Temperature:+105℃
Installation Temperature:-5℃ to+50℃
Voltage Rating:300/500V Test Voltage:2000Vac
